OPCOM Diagnostic Tool for Opel

✅ Key Features – OPCOM PIC18F458 CAN-BUS OBD2 for Opel:

• 🔧 Supports Opel Vehicles with CAN-BUS: Works with most Opel models, including Astra-H, Zafira-B, Vectra-C, and more.
• ⚙️ Firmware Version V1.70: Allows flash firmware updates, unlike V1.99 tools.
• 💡 Live Data Monitoring & Output Testing: View 8 parameters at once and test vehicle components in real-time.
• 🛠️ Full OBD2 Diagnostic Capabilities: Read/clear fault codes with full status (present, intermittent), view measuring blocks, and perform advanced diagnostics.
• 🔐 Key & Immobilizer Programming: Learn keys and remotes, reset immobilizer items (ECM, BCM, IPC), and code airbags (SAB6, SAB8).
• 💻 Windows Compatibility: Best performance on Windows XP/7 32-bit. Works on Windows 10/11 with Windows Security turned off.
• 🚫 Do Not Update Online: Doing so will damage the interface.

🧠 Technical Specifications:

• Software Version: OPCOM 2021 (200603a), V2014, V2012
• Firmware Version: V1.70

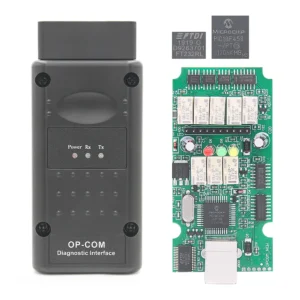

• Main Chips: FTDI FT232RL/FT232RQ + PIC18F458
• Software Language: English (2021); Multi-language available in 2010 version
• Protocols Supported: ISO9141, KWP2000, CAN-BUS

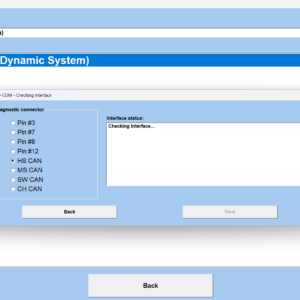

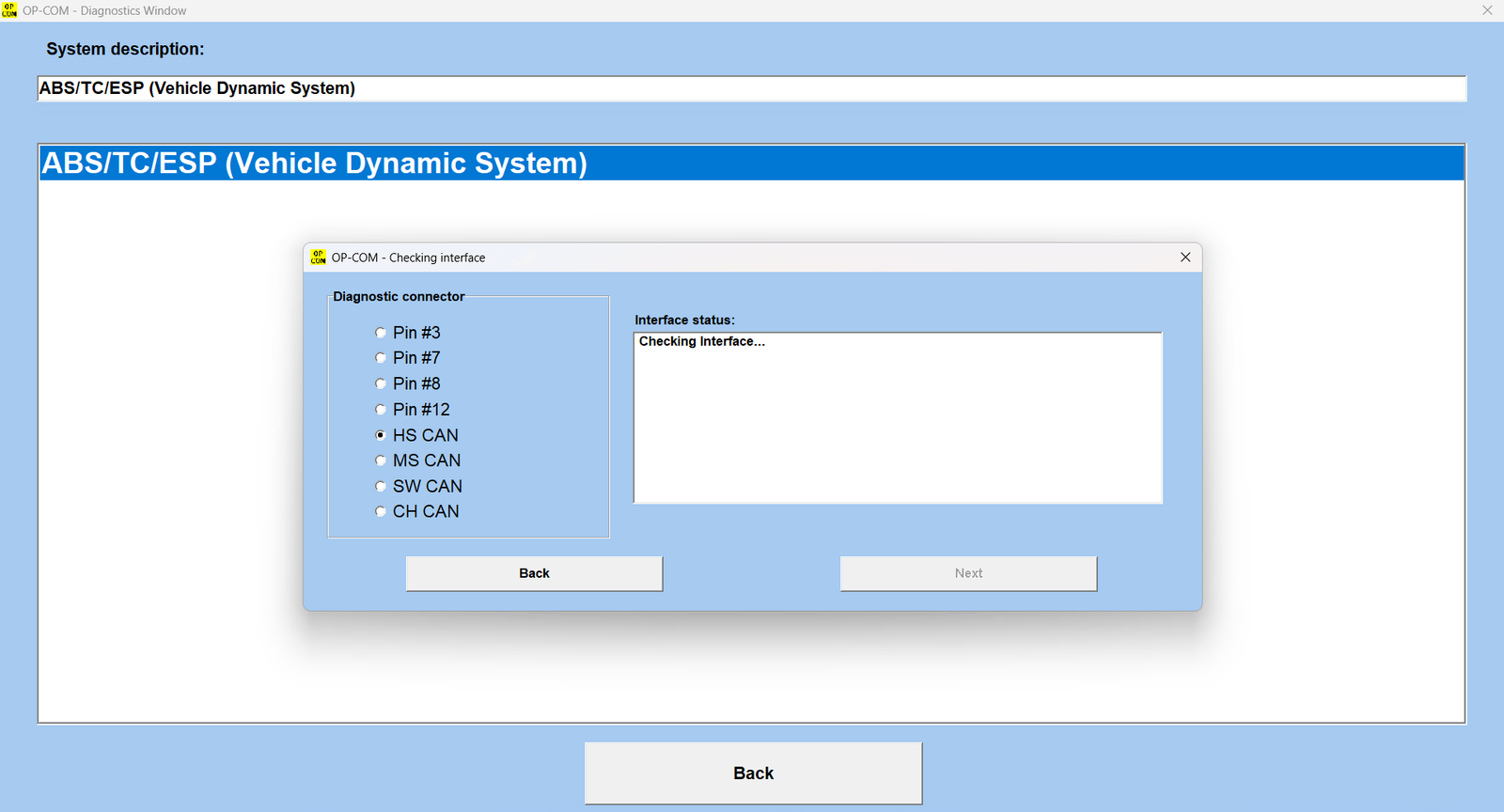

• OBD-II Pin Multiplexing: PIN3, PIN7, PIN8, PIN12 for accurate communication\
• Software 2021 supports cars 2011-2021

💡 Additional Functions:

• Reset service intervals (Astra-G, Zafira, Corsa-C, Meriva)
• Supports advanced modules: Engine, ABS, Airbag, Transmission, Instrument Cluster, Body Control, and more
• USB-based interface ensures stable, high-speed communication (500kbps for CAN-BUS)
• No serial-to-USB converter needed

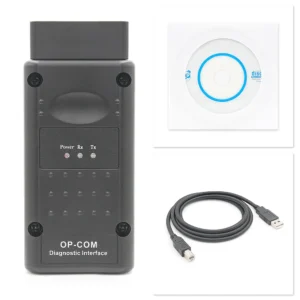

📦 What’s in the Box:

• 1× OPCOM Diagnostic Interface
• 1× USB Cable
• 1× CD with Drivers and Software

📥 Software & Support:

• 🎁 OPCOM 2021 software available – you will get the guide and link after purchase.
• 🎞️ Includes installation video and full tech support
• 📂 Drivers provided; disable Windows Security for installation on modern OS
