Description

You will receive the software download link after purchase.

Professional full-chip diagnostic interface designed primarily for Véhicules Peugeot et Citroën, with support for selected Toyota models and variants built on the PSA platform.

The interface provides comprehensive diagnostic capabilities, including ECU identification, fault-code reading and clearing, live data, actuator tests, ECU configuration, adaptation, coding and selected programming functions, depending on the vehicle and ECU.

The Full Chip interface supports multiple automotive communication protocols, including K-Line, CAN-BUS and SAE J1850 PWM/VPW, providing compatibility with a wide range of supported vehicle systems.

💻 Software Included

The package includes:

• DiagBox V9.85
• DiagBox V9.200
• Installation and usage guidance

DiagBox V9.200

DiagBox V9.200 offers:

• Compatibility with 32-bit and 64-bit Windows systems
• Easy installation without requiring VMware
• Vehicle coverage including models added up to approximately 02/2022
• Installation guidance provided
• Support for use with J2534 Lexia
• French-language version only

Important : Available functions and vehicle coverage depend on the vehicle model, production year, ECU and software version.

🔧 Diagnostic Functions

The Lexia 3 Full Chip interface provides many advanced diagnostic functions available on supported vehicles.

1. ECU Identification

Read detailed information from compatible electronic control units, including:

• ECU identification
• Part number
• Hardware version
• Software version
• Manufacturer information
• Other available ECU data

2. Read Fault Codes

Read diagnostic trouble codes from supported control modules.

The software can display detailed fault information and descriptions to help identify the affected system or component.

3. Clear Fault Codes

Clear stored diagnostic trouble codes after the underlying problem has been diagnosed and repaired.

4. Auto-Scan / Complete Vehicle Scan

Perform a comprehensive scan of the vehicle to identify installed electronic control units and available diagnostic faults.

Depending on the vehicle, supported systems may include:

• Engine ECU
• ABS/ESP
• Airbag/SRS
• BSI/body control
• Antidémarrage
• Transmission
• Climate control
• Instrument cluster
• Central locking
• Other electronic control modules

5. Live Data / Measured Values

Monitor real-time parameters from supported ECUs.

Examples include:

• Régime du moteur
• Battery voltage
• Température du liquide de refroidissement
• Oxygen sensor data
• Position du papillon des gaz
• Pressure readings
• Fuel-system parameters
• Sensor values
• Other ECU parameters

Depending on the ECU and software version, measured values can be displayed in real time, as graphs or recorded for later analysis.

6. Actuator Tests

Perform active tests by commanding supported vehicle components through the diagnostic software.

Examples include:

• Fuel pump
• Ventilateurs de refroidissement
• Door locks
• Central locking
• Relays
• Valves
• Other electronically controlled components

The available actuator tests depend on the individual vehicle and ECU.

7. ECU Configuration & Adaptation

Perform supported configuration, reset and adaptation procedures.

Depending on the vehicle, functions may include:

• Engine ECU configuration
• BSI/body control configuration
• Airbag system functions
• Immobilizer-related procedures
• Alarm system configuration
• ECU replacement configuration
• Reset procedures
• Component adaptation

8. Coding & Selected Programming

The interface supports selected coding, configuration and programming procedures on compatible vehicles.

Programming functions vary depending on the vehicle, ECU and software version.

Some procedures may require manufacturer security credentials or online services. These services and credentials are non inclus.

🚗 Supported Citroën Vehicles

The interface supports a wide range of Citroën vehicles, including older and newer models.

Modèles Citroën

• C-Zero
• C1
• C2
• C3
• C3 Picasso
• DS3
• C-Elysée
• C4
• C4 Cactus
• C4 Picasso
• C4 Aircross
• DS4
• DS 5LS
• DS5
• C5
• C6
• C8
• C-Crosser
• Nemo
• Berlingo
• Jumpy
• Jumper
• AX
• Saxo
• BX
• ZX
• Xsara
• Xantia
• XM
• Evasion
• C15
• Fukang
• Fukang 988
• Elysée
• C-Triomphe
• C-Quatre
• C-Elysée (R3)

Compatibility depends on the vehicle’s model year, engine, ECU and software version.

🚙 Supported Peugeot Vehicles

Modèles Peugeot

• iOn
• 106
• 107
• 108
• 205
• 206
• 207
• 207+
• 280
• 301
• 306
• 307
• 308
• 309
• 405
• 406
• 407
• 408
• 508
• 605
• 607
• 806
• 807
• 1007
• RCZ
• Hoggar
• 2008
• 3008
• 4007
• 4008
• 5008
• Bipper
• Partner
• Expert

The interface is designed for a broad range of Peugeot vehicles from approximately 1995 onward, subject to vehicle-specific compatibility.

🚐 Selected Toyota PSA-Platform Vehicles

The Toyota coverage is limited and should not be considered general Toyota diagnostic support.

The interface may support selected Toyota models/variants that were developed and manufactured on PSA/Stellantis vehicle platforms and use compatible PSA electronic systems.

Examples may include certain versions of:

• Toyota ProAce
• Toyota ProAce Verso
• Other Toyota vehicles derived from compatible PSA platforms

⚠️ Important Toyota Compatibility Information

Not all Toyota vehicles are supported.

Toyota models with Toyota-specific platforms, ECUs or electronic systems should pas be assumed to be compatible.

Support is primarily relevant to selected Toyota vehicles based on PSA platforms, where the vehicle’s electronic architecture and ECU systems are compatible with the supplied diagnostic software.

If you own a Toyota, please confirm the exact model, year and platform before purchase to ensure compatibility.

🔌 Vehicle Connection

The interface can connect to compatible vehicles through the appropriate diagnostic connector.

OBD-II

For vehicles equipped with a standard 16-pin OBD-II connector, connect the interface directly to the vehicle’s diagnostic socket.

The OBD-II connector is generally located near the steering wheel or driver’s side dashboard area.

Manufacturer-Specific Connector

Some older vehicles, particularly those manufactured before approximately 2001, may use manufacturer-specific diagnostic connectors.

The supplied adapter cable allows connection to compatible older vehicles.

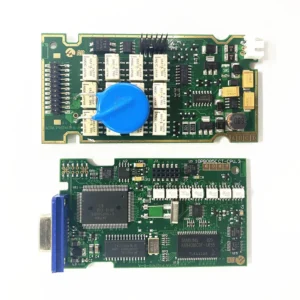

🧩 Full Chip Hardware Design

The Full Chip version is designed for reliable communication with supported vehicle electronic systems.

The interface incorporates:

• K-Line multiplexor
• CAN-BUS interfaces
• SAE J1850 PWM
• SAE J1850 VPW
• Full-chip PCB design
• Gold-edge PCB
• Multiple relays
• Optocouplers for improved signal isolation

This hardware configuration allows communication with multiple diagnostic protocols used by supported vehicle systems.

🖥️ Software & Computer Information

DiagBox V9.200

• Soutien 32-bit and 64-bit Windows systems
• Easy installation
• No VMware required
• Supports vehicles added up to approximately 02/2022
• Installation guidance included
• Compatible with J2534 Lexia
• French language only

Installation

Follow the supplied installation instructions carefully.

Some antivirus programs may incorrectly identify diagnostic software files and remove or quarantine them. If this occurs, follow the supplied installation guidance.

⚠️ Notes importantes

• Do not update the diagnostic software online unless specifically instructed.
• Online updates may cause compatibility problems with the diagnostic interface or installed software.
• DiagBox V9.200 is French-language only.
• Available diagnostic functions depend on the specific vehicle, ECU, model year and software version.
• Not every function is available on every vehicle.
• Coding, adaptation and programming functions vary between vehicles.
• Some programming procedures may require manufacturer security credentials or online services.
• Manufacturer online services and security credentials are non inclus.
• Toyota support is limited to selected PSA-platform models/variants and does not mean general Toyota compatibility.
• Please confirm compatibility with your exact vehicle before purchase if you require a specific diagnostic or programming function.

📦 Le paquet comprend

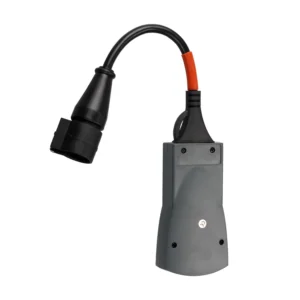

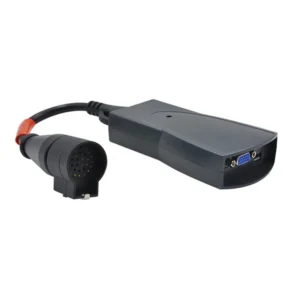

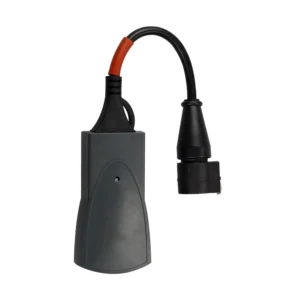

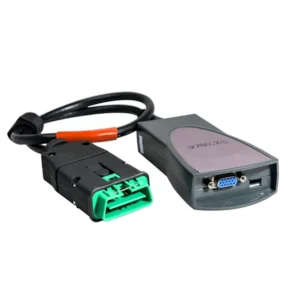

• 1 × Lexia 3 Full Chip Main Diagnostic Interface

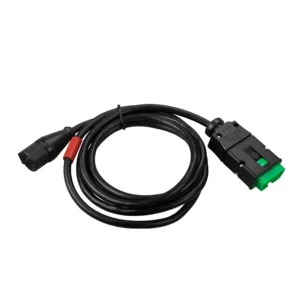

• 1 × Extension OBD2 Cable

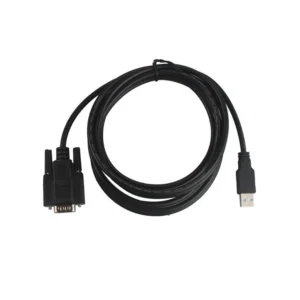

• 1 × Long 9-Pin to USB Cable

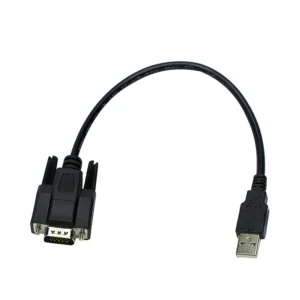

• 1 × Short 9-Pin to USB Cable
• 1 × 16-Pin to Clip Adapter Cable
• 1 × Installation & Activation DVD/Instruction Disc
• DiagBox V9.85 software
• DiagBox V9.200 software – French language
• Installation and usage guidance

✅ Key Benefits

• Full-chip diagnostic interface
• Professional-level diagnostics for supported vehicles
• Extensive Peugeot and Citroën coverage
• Selected Toyota PSA-platform vehicle support
• ECU identification
• Fault-code reading and clearing
• Complete vehicle auto-scan
• Surveillance des données en temps réel
• Actuator testing
• Configuration de l'ECU
• Adaptation and reset functions
• Selected coding and programming functions
• K-Line, CAN-BUS and SAE J1850 communication
• DiagBox V9.85 included
• DiagBox V9.200 included
• V9.200 supports 32-bit and 64-bit Windows systems
• V9.200 includes vehicle coverage up to approximately 02/2022
• Installation guidance included
